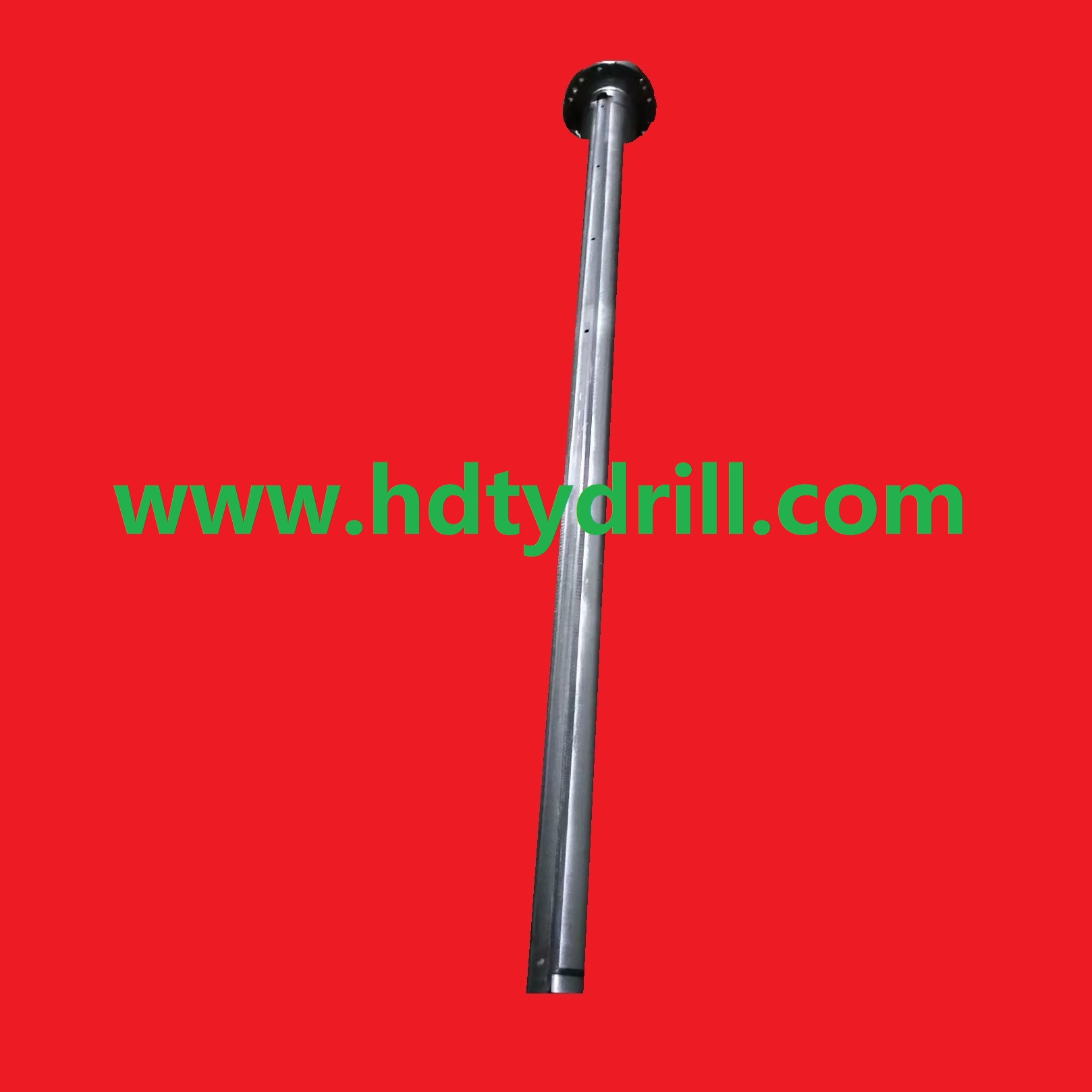

Epiroc Atlas Copco Boomer 281 Extension Tube 3128 3125 79

Epiroc Atlas Copco Boomer 281 Extension Tube 3128 3125 79

Epiroc Atlas Copco Boomer 282 Extension Tube 3128-3125-79

Epiroc Atlas Copco Boomer S1D Extension Tube 3128312579

Extension Tube 3125 4873 01

Extension Tube 3128 3161 75

Extension Tube 3115 2648 00

Extension Tube 3128 3079 72

Extension Tube 3128 3176 05

Extension Tube 3128 3136 82

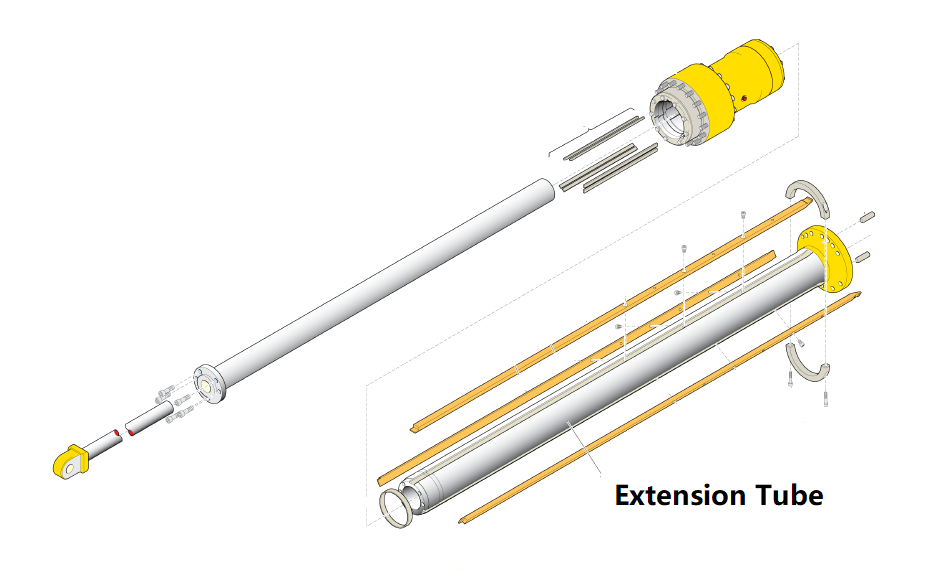

Extension tube.png

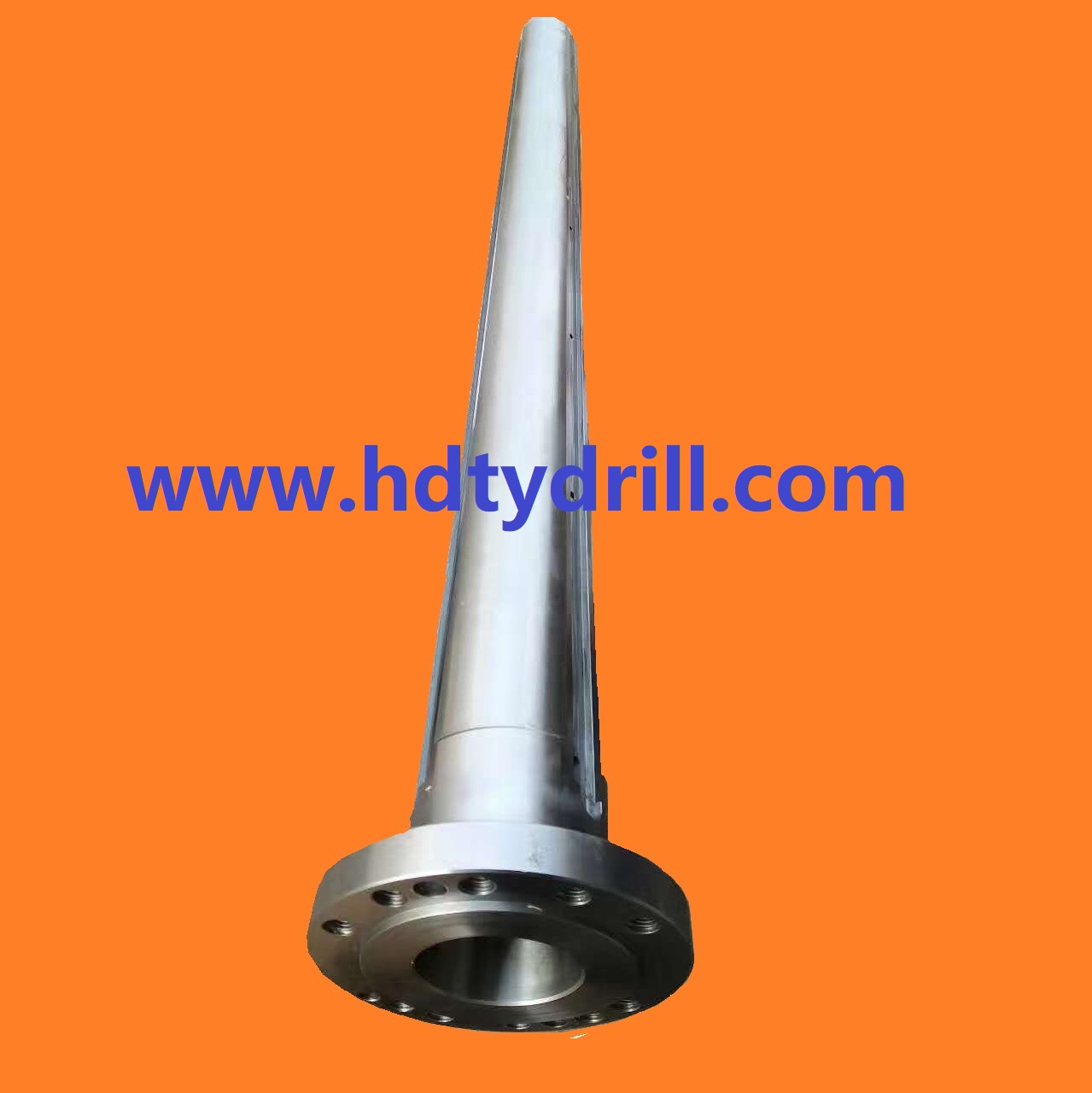

Epiroc Boomer Extension tube 3128 3125 79.jpg

3128 3125 79

3128312579


序号件号品名
13128 0940 39ASSEMBLY SET
23128 3061 81HOLDER
33128 3061 80HOLDER
43128 2802 60HOSE NIPPLE SET
53128 2803 55FEED
63128 2801 20BASIC PART SET
73128 0784 30PULLEY WHEEL
83128 2801 30CYLINDER SET
99126 2322 00HYDR.CYLINDER
103128 3061 83LIMIT SWITCH
113128 0940 37HOLDER
123128 2801 24DETAIL SET
133128 3061 75ROCK DRILL KIT
143128 0475 10HOSE DRUM
153128 2563 54FEED BEAM
163128 2563 55FEED BEAM
173128 2801 28CYLINDER SET
183128 2594 01HYDR.CYLINDER
193128 3059 63BUSHING SET
203128 3139 29FEED
213128 0710 92LIMIT SWIT. SET
223128 3061 83LIMIT SWITCH
233128 2561 69PULLEY WHEEL
243128 2561 94ROCK DRILL KIT
253128 2804 93HOSE NIPPLE SET
263128 2804 94HOSE SET
273128 3132 98FEED BEAM
283128 2801 82CYLINDER SET
293128 2594 02 HYDR.CYLINDER
303128 3106 00DRILL STEEL SUP
313128 2067 39ASSEMBLY SET
323128 3139 29FEED
333128 0710 92LIMIT SWIT. SET
343128 3061 83LIMIT SWITCH
353128 2561 69PULLEY WHEEL
363128 2561 94ROCK DRILL KIT
373128 2804 93HOSE NIPPLE SET
383128 2804 94HOSE SET
393128 3132 98FEED BEAM
403128 2801 82CYLINDER SET
413128 2594 02HYDR.CYLINDER
423128 3106 00DRILL STEEL SUP
433128 2067 39ASSEMBLY SET
443128 0940 39ASSEMBLY SET
453128 0940 50GABLE PLATE
463128 2802 60HOSE NIPPLE SET
473128 2803 55FEED
483128 3059 63BUSHING SET
493128 3139 29FEED
500147 1483 03SCREW, HEX HEAD
510301 2378 00PLAIN WASHER
523128 0940 00ATTACHM.PLATE
530147 1479 03SCREW, HEX HEAD
540291 1128 25LOCK NUT
553128 0619 00KEY
563128 0784 39HOLDER
573128 3074 88SLIDING PIECE
583128 0784 38HOLDER
590574 1285 11HOSE ASSEMBLY
600574 3284 11HOSE ASSEMBLY
610574 2324 11HOSE ASSEMBLY
620574 3283 11HOSE ASSEMBLY
630574 3534 11HOSE ASSEMBLY
643128 2801 20BASIC PART SET
653128 3061 75ROCK DRILL KIT
663128 2563 54FEED BEAM
673128 2563 55FEED BEAM
683128 0551 01RETURN ROPE
693128 0647 02PULL ROPE
703128 2801 28CYLINDER SET
713128 0494 00SPACER SLEEVE
723128 0781 96SPACER
733128 2801 24DETAIL SET
740147 1500 03SCREW, HEX HEAD
753128 0497 00COVER
760666 6718 00RADIAL LIP SEAL
773128 0486 00 PIPE
783128 0784 30PULLEY WHEEL
790666 8007 04AXIAL SEAL
803128 0485 00PLATE
810147 1400 03SCREW, HEX HEAD
823128 0785 49HOLDER
833128 0785 48HOLDER
843128 3039 30SLIDING PIECE
850147 1483 03SCREW, HEX HEAD
860301 2378 00PLAIN WASHER
870147 1247 03SCREW, HEX HEAD
880291 1128 15LOCK NUT
890301 2321 00PLAIN WASHER
903128 3008 53PLATE
910301 2358 00PLAIN WASHER
920111 1281 00SPLIT PIN
933125 0639 00BUFFER
940147 1485 03SCREW, HEX HEAD
953128 2561 39BACK HEAD
963128 0786 26END PIECE
970147 1359 03SCREW, HEX HEAD
983128 0476 00WASHER
990147 1958 29SCREW, HEX HEAD
1003222 3097 49ROPE TENSION
1013128 0484 00CRADLE PLATE
1020113 2231 00BOLT
1033128 2561 37SPACER
1043128 2561 36SPACER
1050147 1494 03SCREW, HEX HEAD
1060500 4536 20BUSHING
1073128 0785 36WASHER
1083128 3051 49ATTACHMENT
1090147 1479 03SCREW, HEX HEAD
1103128 3021 13PLATE
1110147 1400 03SCREW, HEX HEAD
1123128 0783 78WIPER
1130108 3359 00SPRING PIN
1140301 2394 00PLAIN WASHER
1150339 1000 11RING SPRING
1163128 0782 58CRADLE PLATE
1173128 0476 00WASHER
1180335 2152 00CIRCLIP
1190502 1226 01BALL BEARING
1203128 0781 90PULLEY WHEEL
1213128 0481 00SHAFT
1220544 2562 00GREASE NIPPLE
1230147 1962 28SCREW, HEX HEAD
1243128 0783 85CLAMP
1253128 3023 01HOSE ATTACHMENT
1260266 2114 00NUT
1273128 0893 00PROFILE
1280147 1408 03SCREW, HEX HEAD
1293128 3055 75CLAMP
1300147 1359 03SCREW, HEX HEAD
1310301 2358 00PLAIN WASHER
1320108 3322 00SPRING PIN
1330291 1128 18LOCK NUT
1343128 0783 67ATTACHMENT
1350147 1402 03SCREW, HEX HEAD
1360291 1128 22LOCK NUT
1370147 1330 03SCREW, HEX HEAD
1383222 3168 52SIGN
1393128 0482 00WASHER
1403128 0782 73DATA PLATE
1410129 3104 00BLIND RIVET
1423128 0782 88END PLATE
1430147 1485 03SCREW, HEX HEAD
1443128 2801 30CYLINDER SET
1450147 1362 03SCREW, HEX HEAD
1463128 0768 00CLAMP
1473128 0783 60ATTACHMENT
1480113 2413 00BOLT
1490111 1377 00SPLIT PIN
1500147 1401 03SCREW, HEX HEAD
1513128 0784 96STOP PLATE
1520147 1400 09SCREW, HEX HEAD
1530147 1411 12SCREW, HEX HEAD
1540266 2112 00NUT
1550147 1483 03SCREW, HEX HEAD
1563128 0783 90DRILL STEEL SUP
1573128 3037 03DOWEL
1583128 3061 83LIMIT SWITCH
1593128 2301 03SPRING
1600147 1362 03SCREW, HEX HEAD
1613128 0940 37HOLDER
1620147 1487 03SCREW, HEX HEAD
1630301 2378 00PLAIN WASHER
1643128 0784 26DRILL STEEL SUP
1653128 0784 35SPRING
1660147 1411 03SCREW, HEX HEAD
1673128 0782 87TOP PART
1683128 0782 85LOWER PART
1690211 1962 85SCREW
1700301 2358 00PLAIN WASHER
1713128 0940 38SHIM
