Hydraulic Rail and feed beam

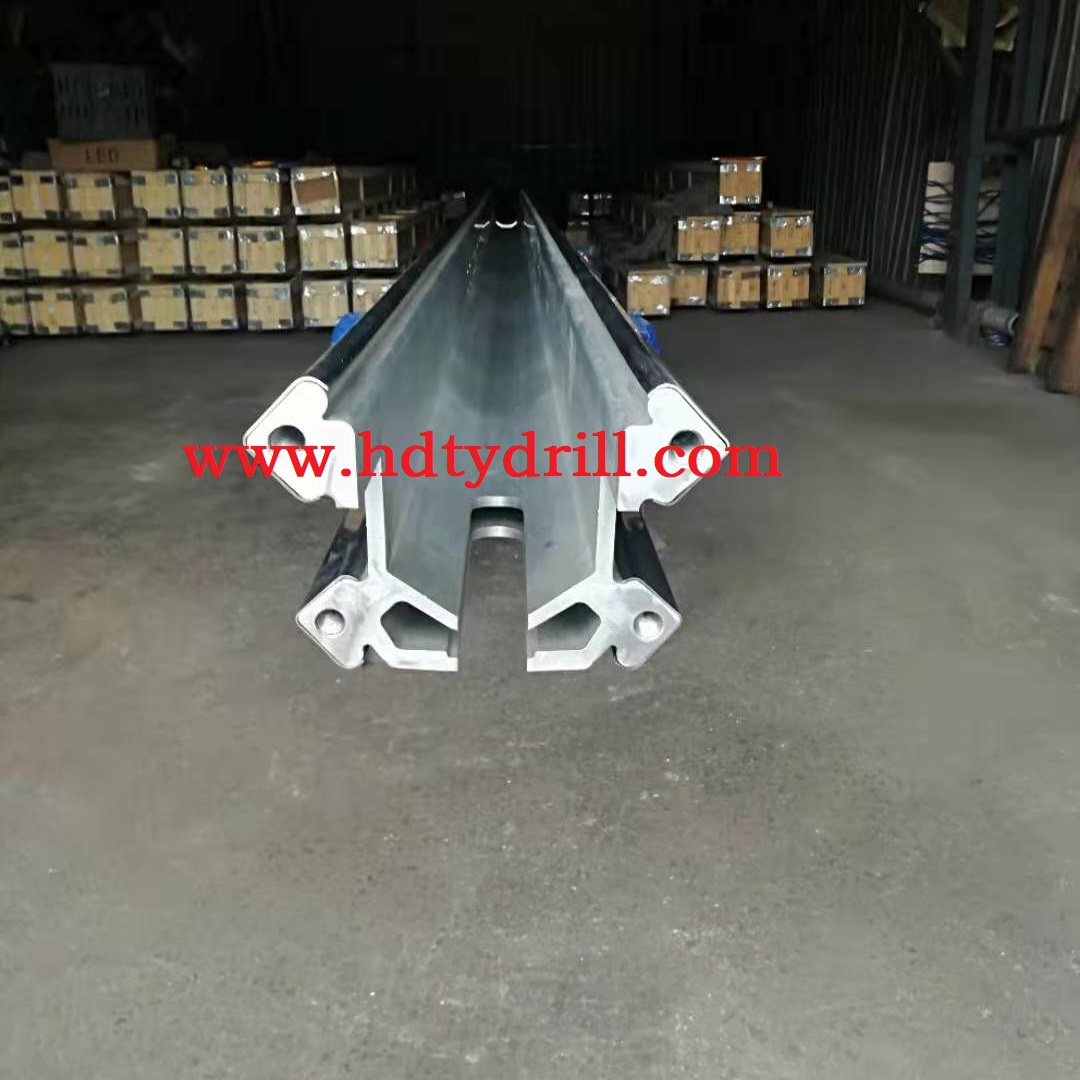

BMH 6000-series heavy-duty aluminum feed rails  with high bending and torional resistance for maximum durability.

Snap-on stainless steel slide bars and polymer contacts。

We design and manufacture this hydraulic feed beams and feed rails for the underground jumbos, shaft sinkers, face drill rigs and bolters. The feed beams Rails are available for the customized production and standard alternative atlas copco/Epiroc boomer parts. The feed beams rails  are constructed of the heavy duty aluminum extrusion profiles.

The feed rails' components are made from good material steel and lightweight aluminum alloy material to make sure the cost and weight economic.

The thread inserts (Helicoil) on the feed beams and feed rails  can protect the thread from the damage.

It greatly increased the torque and guaranteed strong and durable propulsion feed beam rails.

Underground Feed Applications:

Face Drilling Jumbo Feeds

Rock Support Bolter Feeds

Telescopic Feeds

Probe Drilling Feeds

Shaft Sinking Feeds

Block Hole Feeds

Long Hole Feeds

Face Drilling Jumbo Feeds

Rock Support Bolter Feeds

Telescopic Feeds

Probe Drilling Feeds

Shaft Sinking Feeds

Block Hole Feeds

Long Hole Feeds

Feed Data

Feed Telescopic

Telescopic Feed beam BMHT 6000 series

Feed Beams 6000 Series

BMHP6804, BMHP6805, BMHP6806

BMH6800 BMH6814, BMH6816, BMH6818, BMH6820, BMH6821

BMH6900 BMH6914, BMH6916, BMH6918, BMH6920, BMH6921

Epiroc/Atlas copco rocket boomer L2 D

Feed beam,BMH6000 ,6000 Series, Part Number: 3128 0785 20

Epiroc/Atlas copco rocket boomer M2C

Feed beam,BMH6000 ,6000 Series, Part Number: 3128 0785 65

Epiroc/Atlas copco rocket boomer M2D

Feed beam,BMH6000 ,6000 Series, Part Number: 3128 3089 90

Epiroc/Atlas copco rocket boomer XE3C

Feed beam,BMH6000 ,6000 Series, Part Number: 3128 3187 51

Feed beam,BMH6000 ,6000 Series, Part Number: 3128 3078 40

Epiroc/Atlas copco rocket boomer 353E

Feed beam,BMH6000 ,6000 Series, Part Number: 3128 0785 20

Epiroc/Atlas copco ROC D7-11

Feed beam,BMH6000 ,6000 Series, Part Number: 3222 3095 15

Epiroc/Atlas copco ROC D5

Feed beam,BMH6000 ,6000 Series, Part Number: 3222 3095 15

Epiroc/Atlas copco ROC T35

Feed beam,BMH6000 ,6000 Series, Part Number: 3222 3095 15

Epiroc/Atlas copco Simba S7D

Feed beam,BMH6000 ,6000 Series, Part Number: 3222 3153 21

The other BMH6000 feed beams :

Feed beam,BMH6000 ,6000 Series, Part Number : 3128 3166 43,

Feed beam,BMH6000 ,6000 Series, Part Number : 3128 0783 34,

Feed beam,BMH6000 ,6000 Series, Part Number : 3128 3000 18

Feed beam,BMH6000 ,6000 Series, Part Number : 3128 0784 03

Feed beam,BMH6000 ,6000 Series, Part Number : 3128 0784 02

Feed beam,BMH6000 ,6000 Series, Part Number : 3128 0784 01

Feed beam,BMH6000 ,6000 Series, Part Number : 3128 3055 73

Feed beam,BMH6000 ,6000 Series, Part Number : 3128 3167 68

All the feed beams for the drill rigs:

Epiroc/Atlas copco rocket boomer 104

Epiroc/Atlas copco rocket boomer K41X

Epiroc/Atlas copco rocket boomer T1

Epiroc/Atlas copco rocket boomer S1

Epiroc/Atlas copco rocket boomer S2

Epiroc/Atlas copco rocket boomer S1L

Epiroc/Atlas copco rocket boomer S1-DH

Epiroc/Atlas copco rocket boomer 282

Epiroc/Atlas copco rocket boomer 281

Epiroc/Atlas copco rocket boomer M1

Epiroc/Atlas copco rocket boomer M1L

Epiroc/Atlas copco rocket boomer M2

Epiroc/Atlas copco rocket boomer L1

Epiroc/Atlas copco rocket boomer L2

Epiroc/Atlas copco rocket boomer E1

Epiroc/Atlas copco rocket boomer E1-DH

Epiroc/Atlas copco rocket boomer E2

Epiroc/Atlas copco rocket boomer E3

Epiroc/Atlas copco rocket boomer XL3

Epiroc/Atlas copco rocket boomer XE3

Epiroc/Atlas copco rocket boomer 353E

Epiroc/Atlas copco rocket boomer WE3

Epiroc/Atlas copco rocket boomer XE4

Epiroc/Atlas copco Surface drill rigs D7

Epiroc/Atlas copco Simba S7D

Cop1638HD,Cop1838HD,Cop2238HD,Cop3038,Cop4038

We can machine the feed beams according to clients design.
