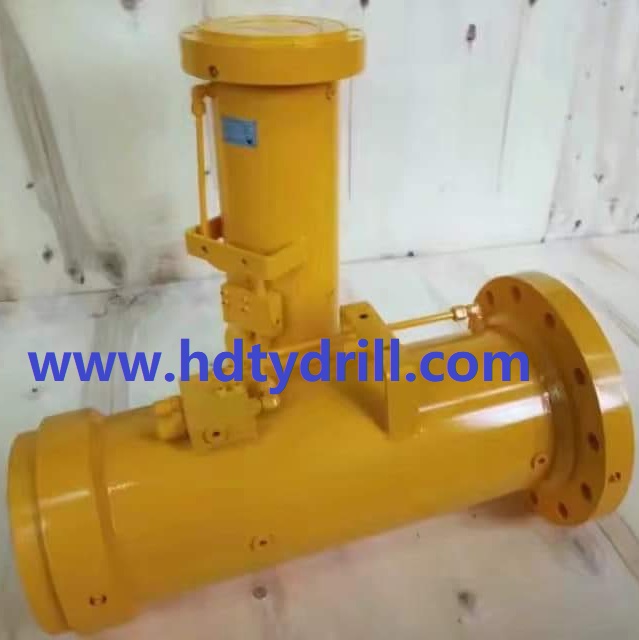

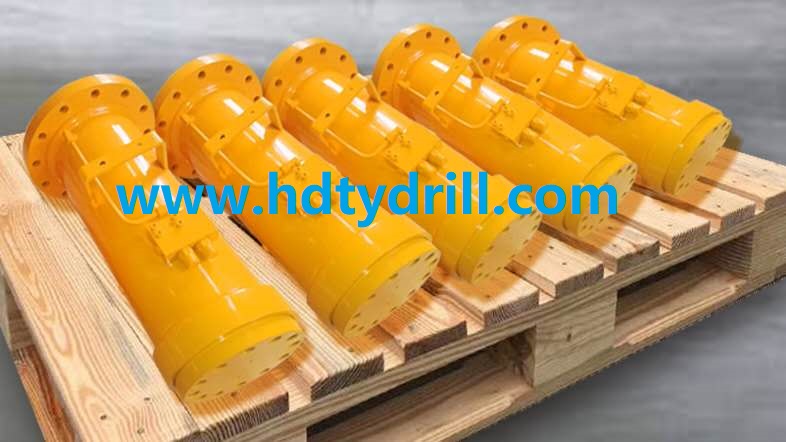

Hydraulic Rotary Actuators Cylinder Turning Device 3128 3126 44


摆动油缸 实物照片.jpg



Hydraulic Rotary Actuators

Helical hydraulic rotary actuators

Rotating cylinder

Swing helical rotation

Helical swing cylinder

Turning device

Rotary cylinder

Swing cylinder


Part Number

3128 3126 44

3128 3059 18


Atlas copco/Epiroc face boomer 281 282 S1D T1D and so on, we produce the Turning device , it have different name in different countries.

it is called Rotation / Rotary/ Rotating Cylinder or Helical swing cylinder. Our cylinder have been used on many face boomers made by Chinese

drill rigs manufacturer and the rotary cylinder have been export to overseas.

We always have stock of the turning device , we can deliver the goods with a week and we also can design and produce the cylinder according

to clients requirement.

Hydraulic rotary actuators are used for high torque, heavy-duty motion applications. They have high force capabilities, high power-per-unit weight and volume, good mechanical stiffness, and high dynamic response. They provide the heft for lifting, turning, indexing, clamping, mixing, bending, testing, and steering applications among others.
