Sandvik Tamrock Feed Beam
Cylinder feed TF500
Cylinder feed TFX500

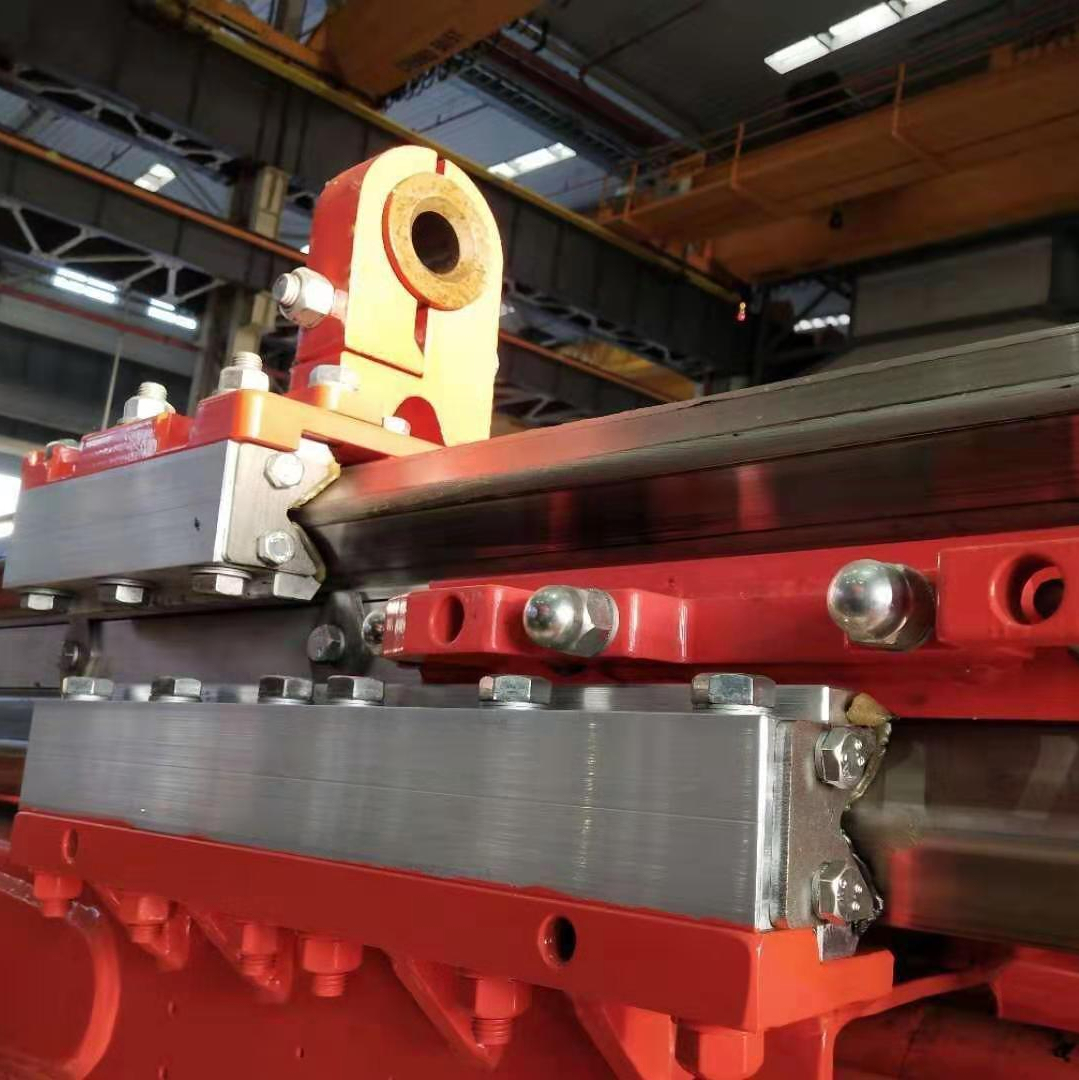

TF 500 cylinder feed The TF feeds are made from heavy duty aluminium box construction profile usingstainless steel guide surfaces. The large diameter feed cylinder and wire rope give up to 25 kN net feedforce.
TFX 500 telescopic feeds are designed for Tamrock face drilling jumbo with HLX5 series rock drills. A Versatile feed for face drilling, bolt hole drilling and cross cuttings in a limited space where both long and short rods have to be used.
The design of the feed beams aims at the simplicity of structure and ease of maintenance. The TFX feed consists of TF and TFX extension kit. When the TFX500 feed is in minimum length, short holes can be drilled and while in Max length, long hole can be drilled ,the extension of feed can be adjusted stepless between Min and Max.
The feed beams are made of special aluminum profile with sliding surface faced with stainless steel strips.
The main components of feed beam as below
Hose Reel
Feed Cylinder
Impulse cylinders for stop and return automatics
Hose support
Travelling centralizer
Feed wire ropes and rope tensioning assembly
Feed beams
Lower feed cylinder
Bracket for feed extension cylinder
Lower feed beams
Front Drill rod cntralizer
Buffer
